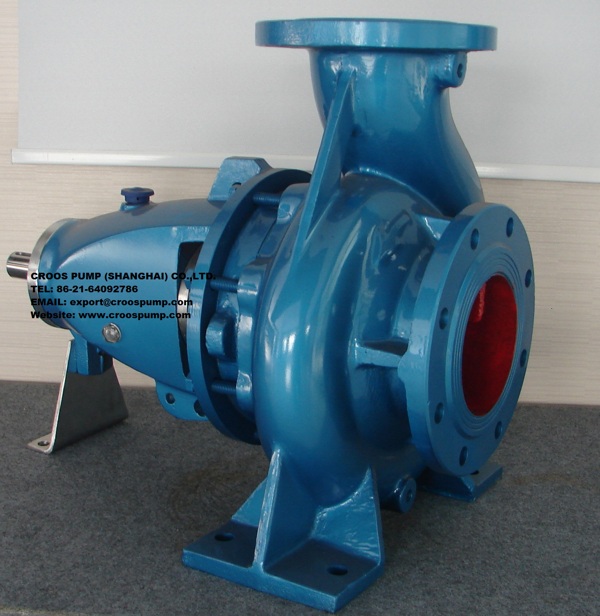

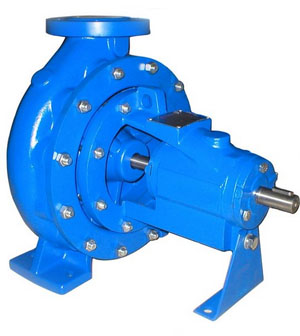

GE End Suction Centrifugal Pump is used for pumping clean water or liquids which chemical and physical property is similar to water.
For the pumps in same model, the performance can be changed by cutting the outer diameter of impeller(which indicated as the latter A, B or C at the end of the model name).
GE pump is simple in structure, reliable in performance, small in size, light in weight, high lift in suction, low consumption in power and easy in maintenance.
For all 60 models, it only have shaft in 4 sizes, bracket in 5 types. For the same model, the shafts, shaft sleeves, shaft seals, bearings and the fasteners of impeller can be interchangeable.
CONSTRUCTION
Constructed to BS EN733/DIN 24255 standard
Back-pull-out design allows disassembling the complete pump rotor, including the bearing bracket without removing the pipes.
Mounting frame is supplied with two ball bearings, lubricated by grease or oil.
|
50Hz |
|
60Hz |
|
32 to 200mm |
Pump sizes |
1.3 to 8 in |
|
4.5 to 1,080m³/h |
Capacities |
19.8 to 4,755 USgpm |
|
Up to 100m |
Heads |
Up to 328 ft |
|
Up to 1.6MPa |
Pressures |
Up to 232 psi |
|
Up to 105° C |
Temperatures |
Up to 221 ° F |
