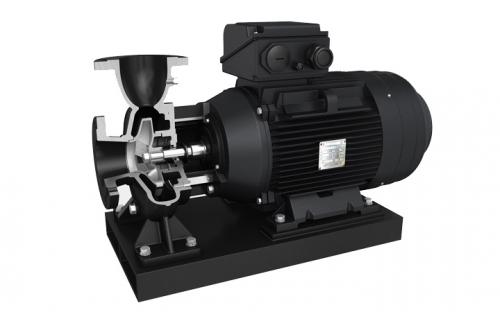

LLK Type Close Coupled Centrifugal Pump

Description of Close Coupled Centrifugal Pump:

LLK close coupled horizontal single stage single suction centrifugal pump is a new energy saving product which has a unique structure and advanced technology. It has advantages of wide performance, convenient maintenance, high efficiency, low noise and long lifetime. It is used to transport clear water and other liquid whose chemical and physical property is similar with the clear water. By changing the material, seal, motor or adding the cooling system, it’s can also be used to transfer hot water, oil or liquid which is corrosive, no containing solid grain, the viscosity similar with water.

Design Feature of Closed Impeller Centrifugal Pump:

1.Famous mechanical seal and bearing, long time running without leakage, reliable operation.
2.Perfect balance, reasonable bearing support, smooth operation, less vibration and low noise.
3.Compact structure design to save 40% occupation.
4.Simple structure to save your maintenance cost and project budget.
5.Suitable for standard motors, so it is easy to interchange the motor.
6.large-scale production to ensure economic cost and easy spare parts supply.
7.Many choices for material, cast iron, cast steel, all stainless steel and duplex stainless steel, bronze for your different application.

Vertical Inline Centrifugal Pump Operation Data:

50Hz		60Hz
40 to 500mm	Discharge Diameter	1.6 to 20 in
4 to 2850m³/h	Capacities	17.6 to 12,548 USgpm
Up to 162m	Heads	Up to 531.5 ft
Up to 2.5MPa	Pressures	Up to 362.6 psi
Up to 120° C	Temperatures	Up to 248 ° F

Application of Close Coupled Centrifugal Pump:

Water transport
Water supply and distribution
Irrigation, drainage and flood control
District cooling/heating
Fire fighting

Vertical Close Coupled Pump Material Available:

Pump Part	Material Combination
Pump Part	Cast Iron	Ductile Iron	Carbon Steel	SS 304	SS 316L	Duplex	Super Duplex
Casing	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex
impeller	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex
Shaft	SS 420				Duplex
Seal housing	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex
