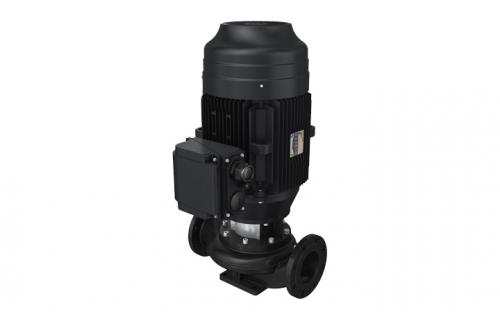

LLKV Vertical Single Stage Inline Centrifugal Pump

Vertical Inline Centrifugal Pump Description:

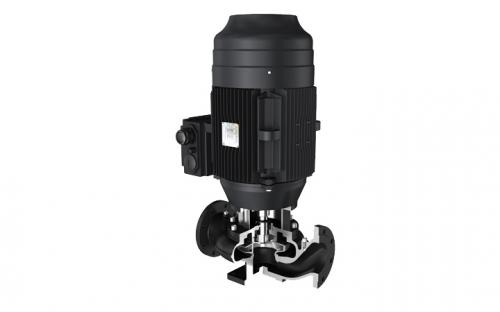

LLKV vertical single stage single suction inline centrifugal pump is a vertical type of LLKC pump. The performance of LLKV inline electric water pump and LLKC pump is same. And the impellers they used are also same. The impeller is directly mounted on the motor shaft. Comparing with the horizontal pump, vertical inline pump only requires haft the floor space. So it can meet the needs where assembling space is limited.

Design Feature of Inline Centrifugal Pump:

1.Vertically mounted design for space saving.
2.Stable running, low noise, high concentricity of components.
3.Simple structure to save your maintenance cost and project budget.
4.Suction and discharge flange designed in the same diameter, and located on the same centerline, to be mounted in pipeline in the way as a valve
5.Suitable for standard motors, so it is easy to interchange the motor.

Vertical Inline Centrifugal Pump Operation Data:

50Hz		60Hz
40 to 500mm	Discharge Diameter	1.6 to 20 in
4 to 2850m³/h	Capacities	17.6 to 12,548 USgpm
Up to 162m	Heads	Up to 531.5 ft
Up to 2.5MPa	Pressures	Up to 362.6 psi
Up to 120° C	Temperatures	Up to 248 ° F

Application of Small Vertical Single Stage Inline Centrifugal Pump:

Water transport
Water supply and distribution
Irrigation, drainage and flood control
District cooling/heating
Fire fighting

Centrifugal Inline Pump Material Available:

Pump Part	Material Combination
Pump Part	Cast Iron	Ductile Iron	Carbon Steel	SS 304	SS 316L	Duplex	Super Duplex
Casing	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex
impeller	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex
Shaft	SS 420				Duplex
Seal housing	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex
