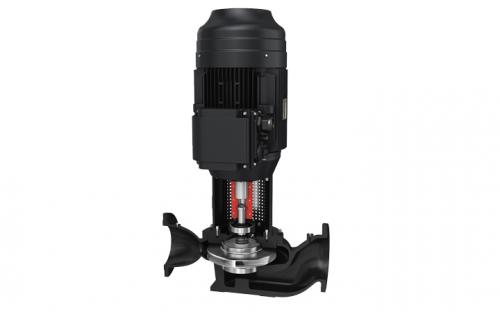

COTV Type Vertical Easy-Dismounting Electric Centrifugal Pump

Description of Vertical Inline Centrifugal Pump:

COTV series vertical inline centrifugal pump are designed in easy dismounting way to reduce the maintenance cost. The performance of COTV pump and COT pump is same. And the impellers they used are also same. Comparing with the horizontal pump, it only requires haft the floor space. So it can meet the needs where assembling space is limited.

The pump shaft and motor shaft are separated and assembled by coupling. Without any crane equipment, no mater how big the motor power is, one and only one person can replace the motor bearing and mechanical seal within 20 minutes.

Vertical Inline Centrifugal Pump Design Feature:

1.Vertically mounted design for space saving.
2.Fully enclosed and well balanced impeller is designed to reduce the vibration and noise.
3.The bearing and mechanical seal can be changed without moving the motor and pipline.
4.Casing with electrophoresis treatment to anti rust.

Performance Data of Vertical Electric Centrifugal Pump :

50Hz		60Hz
50 to 300mm	Diameter	2 to 12 in
8 to 1600 m³/h	Capacities	35 to 7044 USgpm
Up to 125m	Heads	Up to 410 ft
Up to 1.6 MPa	Pressures	Up to 232 psi
Up to 120° C	Temperatures	Up to 248 ° F

Vertical Easy-Dismounting Centrifugal Pump Application:

Water transport
Water supply and distribution
Irrigation, drainage and flood control
District cooling/heating
Fire fighting
Hot water recirculating

Vertical Easy-Dismounting Centrifugal Pump Material Available:

Pump Part	Material Configuration
	Cast Iron	Ductile Iron	Carbon Steel	SS 304		SS 316L	Duplex		Super Duplex
Casing	Cast Iron	Ductile Iron	Carbon Steel	SS304		SS316	Duplex		Super Duplex
impeller	Cast Iron	Ductile Iron	Carbon Steel	SS304		SS316	Duplex		Super Duplex
Shaft	SS 420				SS304	Duplex		Super duplex
Seal housing	Cast Iron	Ductile Iron	Carbon Steel	SS304		SS316	Duplex		Super Duplex
