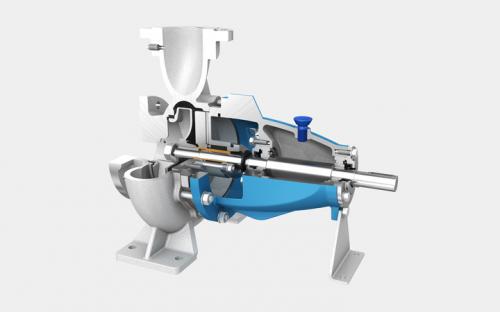

GE Type Horizontal End Suction Centrifugal Pump

Description of End Suction Centrifugal Pump:

GE series horizontal end suction centrifugal pumps are over hung pumps and designed according to EN733/DIN24255 standard, mainly be applied to clean water or liquid with fewer solids, with the cooling device, also can be used for hot water, ethyl alcohol and other industrial process water and sea water. There are three different impeller type can be chosen according to different request: closed, semi-open and open impellers.

Horizontal Centrifugal End Suction Pump Design Feature:

  • Design strictly according to DIN24255 and ISO2858 design, every part can be interchangeability with other same standard brands.
  • Back pull-out design and contact the pump and motor through coupling for easy installing and dismantling.
  • Five size type of shaft of bearing house for the whole series to ensure the less stock and less time of lead time
  • WAX casting for casing and impeller to make sure high efficiency and wonderful surface
  • Flange standard can be made to DIN, ANSI, ISO and another special standard

Operation Data of Horizontal End Suction Centrifugal Pumps:


50Hz

60Hz

Discharge Diameter

32 to300mm

1.5 to12 in

Capacity

Max1,100m³/h

Max 4840 USgpm

Head

<=150m

<=492ft

Speed

1450rpm~2900rpm

1750rpm~3600rpm

Working Pressures

10BAR, 16BAR,20BAR

145psi, 232psi, 290psi

Temperatures

<=105° C

<=221 ° F


Centrifugal End Suction Pump Application:

Civilian, Chemical industry, Metallurgy, Light industry, Irrigation

Such as: Buildings, water works, irrigation, Circulation for the air-conditioning system; oil refining, Steel industry, silver, copper, iron, sternum, aluminum, zinc ore, etc, non-ferrous metal smelting. Foodstuff, medicine, drink, clean water, liquor, desalination of sea water and water treatment.


End Suction Centrifugal Pump Material Available:

Pump Part

Material Configuration

Cast Iron

Ductile Iron

Carbon Steel

SS 304

SS 316L

Duplex

Super Duplex

Casing

Cast Iron

Ductile Iron

Carbon Steel

SS304

SS316L

Duplex

Super Duplex

impeller

Cast Iron

Ductile Iron

Carbon Steel

SS304

SS316L

Duplex

Super Duplex

Shaft

SS 420

SS304

Duplex

Super Duplex

Seal housing

Cast Iron

Ductile Iron

Carbon Steel

SS304

SS316L

Duplex

Super Duplex
