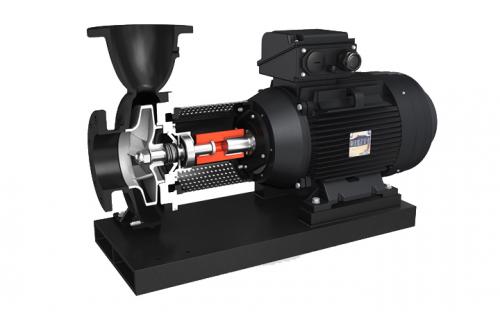

COT Type Horizontal Easy-Dismounting Centrifugal Electric Pump
  • coth-type-horizontal-easy-dismounting-centrifufal-pump-1.jpg
  • coth-type-horizontal-easy-dismounting-centrifufal-pump-2.jpg
Similar products

COT Type Horizontal Easy-Dismounting Centrifugal Electric Pump

Description of Horizontal Centrifugal Electric Pump:

COT series horizontal easy-dismounting centrifugal electric pumps are designed in easy dismounting way to reduce the maintenance cost. The pump shaft and motor shaft are separated and assembled by coupling. Without any crane equipment, no mater how big the motor power is, one and only one person can replace the motor bearing and mechanical seal within 20 minutes.

Design Features of Horizontal Centrifugal Pump:

  • Split coupled transmission part is designed to make the maintenance of pump unit easier. The maintenance can be proceed without dismounting the pump and removing the motor.
  • Fully enclosed, balanced and one piece-type impeller is designed to reduce the vibration and noise.
  • Inner flushing device improve the operation conditions and prolong the service life.
  • High precision water cycle(lubrication) bearings and outside balanced mechanical seals designed to support the system reasonably and make the running smoothly.
  • Uncovered rotating parts with coupling guard for protection during operation
  • Both horizontal and vertical construction for different installing condition.

Horizontal Centrifugal Electric Pump Performance Data:


50Hz


60Hz

50 to 300mm

Diameter

2 to 12 in

8 to 1600 m³/h

Capacities

35 to 7044 USgpm

Up to 125m

Heads

Up to 410 ft

Up to 1.6 MPa

Pressures

Up to 232 psi

Up to 120° C

Temperatures

Up to 248 ° F


Application of Horizontal Easy-Dismounting Centrifugal Pump:

Water transport
Water supply and distribution
Irrigation, drainage and flood control
District cooling/heating
Fire fighting
Hot water recirculating

Centrifugal Pump Material Available:


Pump Part

Material Configuration

Cast Iron

Ductile Iron

Carbon Steel

SS 304

SS 316L

Duplex

Super Duplex

Casing

Cast Iron

Ductile Iron

Carbon Steel

SS304

SS316

Duplex

Super Duplex

impeller

Cast Iron

Ductile Iron

Carbon Steel

SS304

SS316

Duplex

Super Duplex

Shaft

SS 420

SS304

Duplex

Super duplex

Seal housing

Cast Iron

Ductile Iron

Carbon Steel

SS304

SS316

Duplex

Super Duplex
